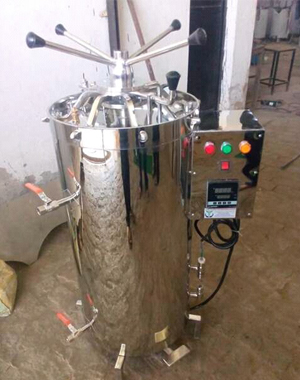

Standard models of Vertical autoclave units manufactured by AD Pharma are available with chamber volumes of 22 liters to 175 liters that accommodate two and three drums accordingly. These systems are designed for meeting effective sterilization requirements in bacteriological and research laboratories, hospitals and clinics and food and beverage units. The vertical chamber design maximizes space utilization, while microprocessor control system enables comfortable working all the time you operate the machine.

Also called vertical steam sterilizers, our vertical type autoclaves deliver flexible solutions of steam sterilization in hospitals, clinics and other areas of application, where reliable steam sterilization is a mandatory process. Vertically designed chamber provides guaranty of safe and efficient sterilization even in confined spaces. In order to suit specific application, these units are fabricated as fully GMP stainless steel double and triple walled construction; in addition, we also manufacture vertical autoclaves with other configurations, which include stainless steel inner and exterior made of Mild Steel (MS).

ad pharma

Features

Tank volume 20 to 175 liters Equipped with joint less silicon rubber gasket
Provided with immersion type heater Double, triple wall & GMP construction
Comply with NABL standards Radial or wing nut type door locking
Supply with drums (extra cost) Water level indicator
Easy operation and low maintenance Digital temperature indicator
IQ / OQ / PQ Documentation Temperature chart recorder
Provision to attach dot matrix printer USB interface for data transfer

Specifications

Model AD/VA-22 AD/VA-40 AD/VA-50 AD/VA-95 AD/VA-175
Internal Tank Capacity 22 Liter 40 Liter 50 Liter 95 Liter 175 Liter
Load 2.00 KW 3.00 KW 3.00 KW 4.00 KW 6.00 KW
Chamber dimension 10” x 18” 12” x 22” 14” x 22” 18” x 24” 22” x 36”
No.of Drums & Sizes - 2 (9” x11”) 2 (9” x11”) 2 (12” x 15”) 3 (12” x 15”)

Working Pressure

1.2 kgf/cm sq.g (15 psi - 17 psi) (Can be Upgraded up to 30 PSI)


Sterilizing Temperature

121°C to 134°C (150°C - Optional)


Heat Average

<=±1°C


Sterilization Time

0 to 99 min


Digital Timer

25 to 30 Minutes


Construction

Double / Triple wall & SS GMP construction


Outer Chamber

Mild Steel (304 stainless Steel – Optional)


Inner Chamber

304 SS (316 / 316L grades Stainless Steel – Optional)


Insulation

Glass Wool


Waste Container

Stainless Steel


Door / Lid

Foot lifted with safety and interlock device


Door Locking type

Radial Type (Wing Nut Optional)


Water Filling & Removal

Manual


Safety Features

Radial locking, safety valve, low water detector and pressure interlock.


Optional Accessories :-

Note :- Also manufacturing customize Horizontal Autoclave.
